I have spent fifteen years on the operations side of a chromatography consumables business, and I can tell you that the fastest way to turn a clean 96-injection sequence into a service call is to buy the wrong septa. I have seen a $0.12 septum crack a $4,000 autosampler needle, and I have watched a lab burn two weeks of method development because a silicone septum was off-gassing into a headspace vial. This guide is what I would hand a new buyer or a lab manager who wants to get septa right the first time.

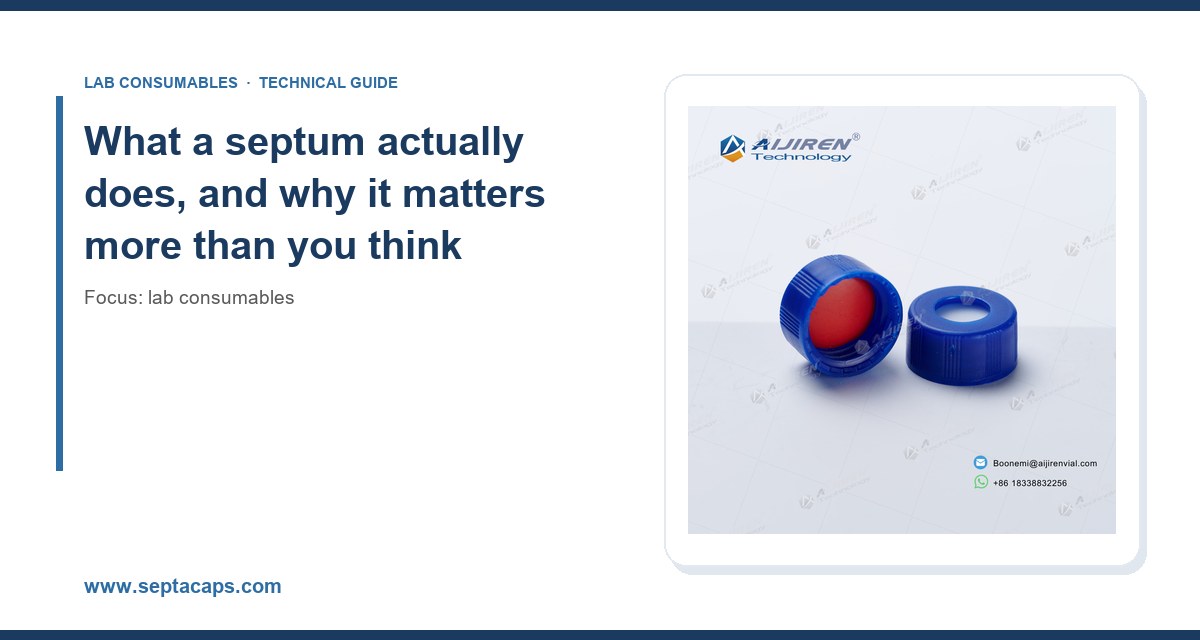

A septum is a small, deformable membrane that seals a vial or a GC inlet while still allowing a needle to penetrate it. That is the whole job, and it is harder than it sounds. The septum has to hold a seal against internal pressure or vacuum, survive repeated needle punctures without coring or tearing, resist chemical attack from the sample and the carrier gas, and stay inert enough that it does not contribute peaks to your chromatogram. When any one of those four jobs fails, you get a symptom that shows up somewhere else entirely: a ghost peak, a drifting baseline, a bent needle, a leak that only appears at 250 °C.
The reason septa get under-specified is that they are cheap relative to the instrument. A procurement manager looks at a box of 100 septa and sees a line item worth a few dollars. The operator sees the same box and should see the single most repeatedly stressed component in the sample path. A septum in a busy autosampler can be punctured 50 to 100 times in a single run sequence. Multiply that by 200 working days and you are asking one small disc of elastomer to survive thousands of needle strikes without shedding a particle into the vial.
The four failure modes you will actually encounter
In my experience the failures cluster into four buckets, and knowing which one is biting you tells you which property to specify.
- Coring and fragmentation. The needle punches a plug out of the septum, and that plug falls into the vial or lodges in the needle. This is the classic cause of a blocked needle and an aborted sequence. It is almost always a hardness and needle-geometry mismatch.
- Off-gassing and bleed. The elastomer releases volatile compounds, especially at elevated inlet temperatures. You see it as a rising baseline, a cluster of siloxane peaks, or a persistent ghost peak at a retention time you cannot explain.
- Chemical swell and degradation. The sample solvent or the carrier gas attacks the elastomer, the septum swells, the seal fails, and you get a leak that shows up as a pressure error or a retention-time drift.
- Mechanical extrusion and leak. Under inlet pressure the septum creeps or extrudes, and the seal opens. This is a torque and compression problem as much as a material problem.
The material decision comes first
You cannot fix a material problem with a better torque value. Get the elastomer right before you worry about anything else. Here is how the common septum materials actually behave in service, with the numbers I use when I am specifying for a customer.
Silicone
Silicone is the most puncture-tolerant general-purpose septum material. It is soft, it reseals well after a needle withdrawal, and it tolerates a high puncture count. The trade-off is bleed: standard silicone off-gasses at elevated temperature and is a poor choice for trace analysis or for GC inlets running above roughly 200 °C. Use it for low-temperature work, for large-volume or preparative applications, and for situations where needle life matters more than baseline cleanliness. A general-purpose silicone septum will typically take 50 to 100 punctures before reseal performance degrades, depending on needle gauge.
PTFE-faced silicone
This is the workhorse for HPLC and for many autosampler applications. A thin PTFE film is bonded to a silicone core. The PTFE face gives you chemical resistance and a low-bleed surface in contact with the sample, while the silicone core provides the elasticity to reseal. This is what most people mean when they ask for a vial septum for a standard HPLC autosampler. The PTFE face is typically 0.05 to 0.13 mm thick, and the total septum thickness for a standard 11 mm crimp vial is around 1.0 mm. Puncture counts run 30 to 60 before the PTFE face starts to tear and the silicone core is exposed.
PTFE/silicone laminated (dual-layer)
Similar to the faced version but with PTFE on both faces or a thicker laminate. Better chemical resistance on both sides, slightly stiffer, and a bit more prone to coring if the needle is dull. Good for aggressive solvents and for storage of samples that will sit in the autosampler for hours.
Butyl rubber
Butyl is the low-permeability choice. It resists gas and moisture transmission far better than silicone, which makes it the right material for headspace vials and for samples where you are worried about oxygen ingress or solvent loss over a long queue. It is not as puncture-tolerant as silicone and it is not the material for high-temperature inlets. For headspace work, butyl or a butyl-laminated septum is usually the correct call.
Bonded and molded septa
Bonded septa are pre-assembled into the cap, which eliminates the operator error of a mis-seated septum and speeds up vial preparation. If your lab preps hundreds of vials a day, bonded caps are worth the premium purely on labor. The trade-off is that you cannot mix and match septum and cap materials independently.
Quick material decision table
- HPLC, standard reversed-phase, ambient to 40 °C: PTFE-faced silicone, 11 mm, ~1.0 mm thick, 30–60 punctures.
- GC inlet, split/splitless, up to 250–300 °C: high-temperature silicone or a dedicated GC inlet septum, not a vial septum.
- Headspace, 40–80 °C, gas-tight: butyl or butyl-laminated, low permeability.
- Trace analysis, ppb level: PTFE-faced, low-bleed, and precondition the septum before use.
- Aggressive solvents (DMSO, THF, chlorinated): PTFE-faced or full PTFE laminate, never bare silicone.
Dimension and fit: the numbers that cause leaks
Most leaks I have diagnosed were not material failures. They were dimensional mismatches between the septum, the cap, and the vial neck. The septum has to compress into the cap and seat against the vial neck with a defined compression. If the septum is too thin, it does not seal. If it is too thick, the cap will not seat and the crimp or screw torque will be wrong.
For the standard 11 mm crimp vial used across most HPLC autosamplers, the septum is nominally 11 mm diameter and about 1.0 mm thick. For 13 mm and 20 mm vials the septum scales accordingly. The critical check is that the septum diameter matches the cap’s inner seat and that the thickness is within the cap’s compression range. A 1.0 mm septum in a cap designed for 1.3 mm will leak at the neck every time.
If you are running a modern autosampler, the vial, cap, and septum are a system. It is worth reviewing the autosampler vial specifications as a set rather than buying septa in isolation, because the cap geometry dictates the septum geometry. I have seen labs save a few cents per septum by buying a generic disc and then lose a full day to a leaky sequence.
Torque and compression
For screw-thread caps, the seal depends on compression of the septum against the vial neck. Over-torquing deforms the septum, thins it under the cap, and can cause it to extrude or crack. Under-torquing leaves a leak path. In practice, hand-tight plus a quarter turn is the working rule for most screw caps, and if you are using a capping tool, follow the manufacturer’s torque spec. For crimp caps, the crimper adjustment matters more than torque: an over-crimped cap crushes the septum and a loose crimp leaks. Check your crimper every few hundred vials with a go/no-go gauge, and re-check after any change of cap lot.
Puncture count, needle gauge, and the coring problem
Puncture count is the spec nobody prints on the box and everybody needs. The number depends on needle gauge, needle bevel, septum hardness, and how the autosampler handles the needle. A 22-gauge needle with a standard bevel will core a soft silicone septum faster than a 26-gauge needle. A blunt or burred needle will core any septum. If you are seeing fragments in vials, the first thing to check is the needle, not the septum.
As a working rule: a PTFE-faced silicone septum in a standard HPLC autosampler will give you 30 to 60 clean punctures before the PTFE face tears. A bare silicone septum will give you more punctures but more bleed. If your method requires more than 60 injections from a single vial, either use a septum rated for it or plan to re-seat the vial. Do not assume a septum is good for 100 punctures just because the needle still goes through.
Pre-slit septa
Pre-slit septa have a small slit molded in to guide the needle and reduce coring. They are a good choice for high-puncture-count methods and for autosamplers with a fixed needle path. The downside is that a pre-slit septum is slightly more permeable, so it is a poor choice for headspace or for long-term storage where you care about gas tightness. Use pre-slit for throughput, not for containment.
Temperature ratings and the bleed curve
Every septum has a temperature above which it starts to bleed and deform. Standard silicone is comfortable to about 200 °C; high-temperature grades go to 300 °C or a little beyond. But the rating is not a cliff. Bleed rises gradually as you approach the limit, and a septum run at 280 °C will contaminate a sensitive detector long before it fails mechanically. If you are doing trace GC work, run the septum below its rated maximum, not at it.
For GC inlets, the septum is a wear item that should be changed on a schedule, not on failure. I recommend changing the inlet septum every 50 to 100 injections for a split/splitless inlet, or weekly in a busy lab, whichever comes first. Keep a log. The labs that fight ghost peaks are almost always the labs that cannot tell you when the septum was last changed.
Chemical compatibility: the solvents that eat septa
Silicone swells in nonpolar solvents and is attacked by some chlorinated and aromatic solvents. PTFE is far more resistant but is not a structural material on its own, which is why it is used as a face or laminate. The solvents that cause the most trouble in my experience are DMSO, THF, dichloromethane, and concentrated acids. For these, specify a PTFE-faced or full PTFE laminate and check compatibility before you commit a method. If you are unsure, run a short swell test: weigh a septum, soak it in the solvent for 24 hours, weigh it again, and measure the dimensional change. More than about 10 percent swell and you should change material.
Contamination control: the invisible spec
For trace and ultra-trace analysis, the septum is a contamination source. Extractables and leachables from the elastomer can show up as peaks, and particulates from a cored septum can block a column frit. Buy low-bleed grades, precondition the septum by heating it under carrier gas before use, and handle septa with clean gloves. Do not store septa in a drawer next to solvents. A septum that has absorbed solvent vapor in storage will off-gas it into your vial.
A buying checklist with concrete numbers
Here is the checklist I use when specifying septa for a new method or a new lab. Work through it in order.
- Application: HPLC, GC inlet, or headspace. This determines the material family before anything else.
- Vial size: 11 mm, 13 mm, or 20 mm. Match the septum diameter to the cap seat exactly.
- Thickness: ~1.0 mm for standard 11 mm crimp; confirm against the cap’s compression range.
- Temperature: operating temperature plus a 20–30 °C margin below the rated maximum.
- Puncture count: required injections per vial vs. the septum’s rated punctures (30–60 for PTFE-faced, 50–100 for silicone).
- Solvent compatibility: check swell; keep below 10 percent dimensional change.
- Bleed: low-bleed grade for trace work; precondition before use.
- Cap type: crimp vs. screw vs. bonded; confirm crimper or torque spec.
- Lot consistency: ask for a certificate of analysis and a hardness spec (typically Shore A 45–55 for silicone septa).
- Storage: cool, dry, away from solvents and sunlight; use within the manufacturer’s shelf life.
Troubleshooting checklist
When something goes wrong, work from the septum outward. Most of the time the septum is either the cause or the messenger.
- Ghost peaks or rising baseline: suspect septum bleed. Change the septum, check inlet temperature against the rating, and precondition the new one.
- Blocked or bent needle: suspect coring. Inspect the old septum for a missing plug, check needle bevel and gauge, and consider a pre-slit septum.
- Leak or pressure error: suspect a dimensional or torque problem. Check septum thickness against the cap, re-crimp or re-torque, and inspect the vial neck for damage.
- Retention-time drift: suspect a slow leak at the septum or a swollen septum. Run a swell test on the solvent in use.
- Particulates in the vial: suspect a cored septum or a dirty needle. Filter a blank and inspect under a loupe.
- Sample loss over a long queue: suspect permeability. Switch to a butyl or laminated septum for headspace and long storage.
Where to buy and what to ask for
Buy from a supplier who can tell you the material, the hardness, the thickness tolerance, and the bleed grade, and who will send a certificate of analysis with the lot. If a supplier cannot answer a question about hardness or extractables, they are reselling, not manufacturing, and you will get lot-to-lot variation. For the full range of septa and caps, start with the septa catalog and match the part number to your vial and cap system. If you are running HPLC, the HPLC vial reference will help you confirm the vial-cap-septum combination before you order.
For method development and instrument-specific guidance, the instrument makers publish useful compatibility and consumable data. Agilent’s GC columns and accessories documentation covers inlet septum selection and replacement intervals. Thermo Fisher’s chromatography and sample handling resources cover autosampler consumables. Restek’s technical resources are excellent on bleed and inlet maintenance. And if you are working under a regulatory method, the U.S. EPA SW-846 test methods will tell you what the method actually requires for sample containment and holding times, which in turn tells you how gas-tight your septum needs to be.
Recommendation
If you want a single default that works for most HPLC autosampler workflows, specify an 11 mm PTFE-faced silicone septum, about 1.0 mm thick, Shore A 45–55, low-bleed grade, matched to your cap system, and plan on 30 to 60 punctures per septum with a change interval of one week in a busy lab. For GC inlets, use a dedicated high-temperature inlet septum rated at least 20–30 °C above your operating temperature and change it every 50 to 100 injections. For headspace, switch to butyl or a butyl laminate for gas tightness. Buy on certificate of analysis, not on price per box, and keep a septum change log next to the instrument. The labs that never have septum problems are not buying better septa; they are buying the right septa and changing them before they fail.
